Pylon Signage in Dubai Built Tall, Wind-Rated, and Seen From the Road
Bab Al Mashriq is a pylon sign company in Dubai. We engineer, fabricate, and install pylon signs, totems, and monument signs. These tall freestanding signboards guide visitors and advertise your brand from the roadside. We build a wind-rated structure, wire the LED lighting, and handle every municipality permit. One team covers design, fabrication, and pylon signage installation, with over 11 years of work since 2015. Call +971 55 397 5597 for a free site survey and a fixed quote.
Scope of our services
We do not offer services to signage companies.
Compliant & Approved By
- RTA DUBAI
- DUBAI MUNICIPALITY
- DED
- NAKHEEL
What is pylon signage?
Pylon signage is a tall, freestanding outdoor sign on one or more columns, built to be seen from afar. It is also called a totem structure or monolith sign. You see them at malls, hotels, petrol stations, and business parks, listing a brand or several tenants. Pylon signs are part of our outdoor signage range.
The word “pylon” means a tall tower or gateway, from the Greek word for gateway. In signage, the pylon is the tall support that lifts the sign cabinet above cars, walls, and trees, so drivers see it early. In short, the pylon signage meaning is a tall roadside sign on a raised column.
Types of pylon signage
The three main types of pylon signs are single-pole, twin-pole, and multi-tenant pylons. They also split by lighting into illuminated and non-illuminated. Here are the types we build.
Single pylon signs
A single pylon uses one central support column. It takes about 35% less ground area than a multi-pole sign. Retail units use this compact format for high-impact street visibility.
Double (twin) pylon signs
A double pylon uses two vertical supports for extra stability. It handles large-scale branding and wind loads over 140 km/h. Logistics centres use it to display long tenant directories.
Multi-tenant and monument pylon signs
A multi-tenant pylon lists several businesses on a stacked pylon signage board, common at malls and complexes. A pylon monument sign sits lower on a solid base for entrances and compounds. For directories inside a complex, see our wayfinding page.
LED and illuminated pylon signs
LED pylon signage stays legible at night and uses about 50% less energy than old fluorescent tubes. We fit IP67-rated modules for weatherproof performance. Digital pylon signs add a programmable LED screen for prices or rolling ads.
Non-illuminated pylon signs
Non-illuminated signs use reflective vinyl or external floodlighting. This lowers the build cost by about 25% and needs less electrical maintenance.
Custom and 3D pylon signs
Custom and 3D pylon signage uses unique shapes, 3D letters, and non-standard materials to match your brand. We also make small pylon signs for compact plots and shopfront forecourts.

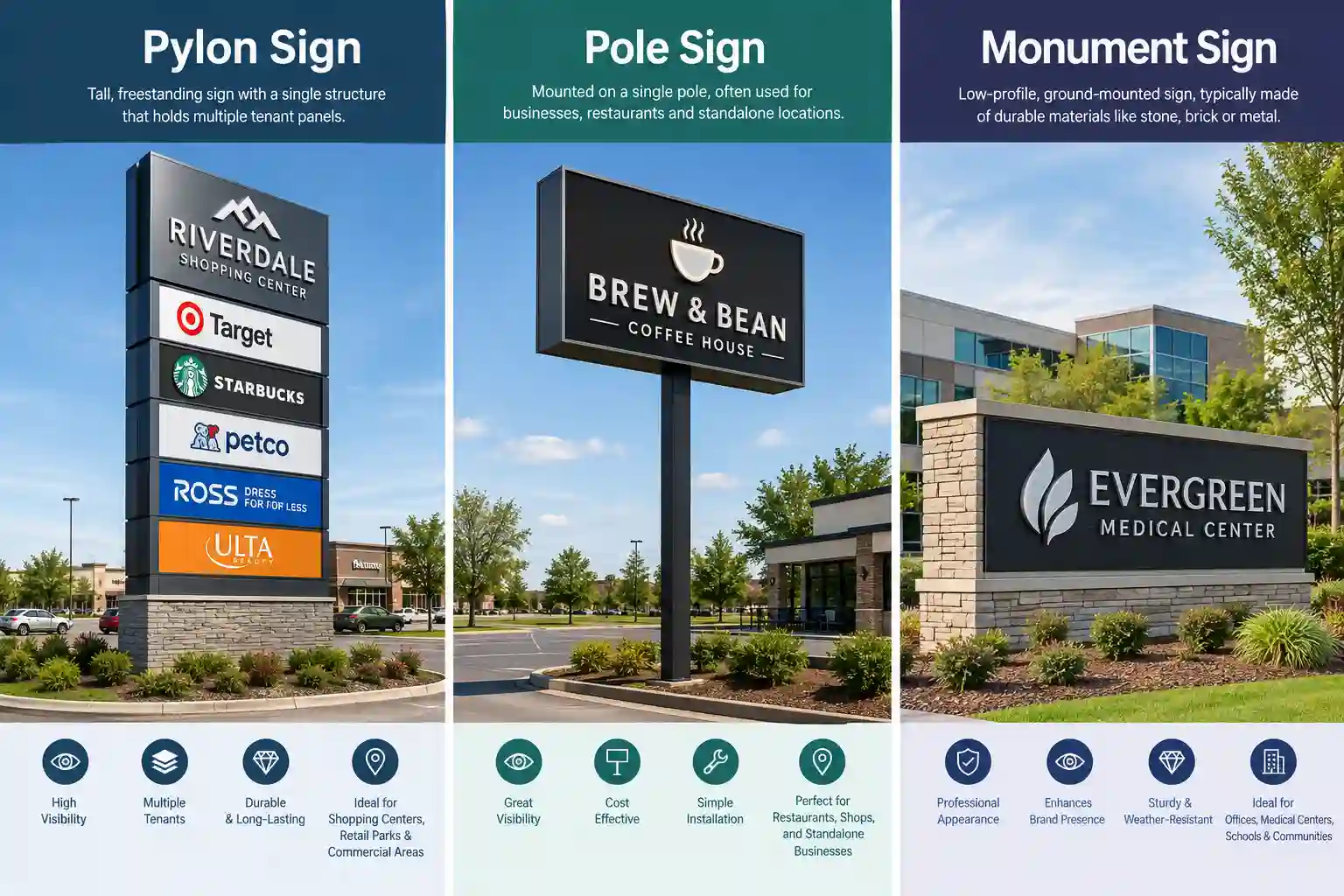

Pylon sign vs pole sign vs monument sign
A pole sign sits on exposed poles; a pylon sign encloses the support in a clad column. A monument sign is a low, ground-level sign on a wide base. Pylons are the tallest of the three and the best for roadside and highway visibility.

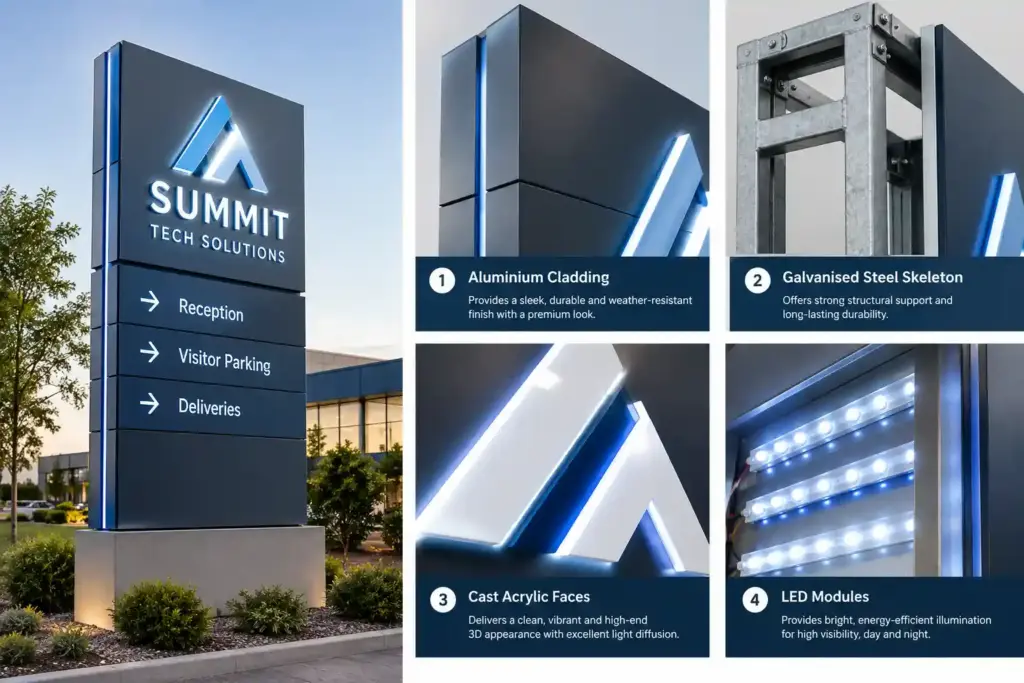

Pylon signage materials and specifications
We build pylon structures from aluminium cladding, a galvanised steel skeleton, cast acrylic faces, and LED modules. Each material is chosen for strength in Dubai’s heat and wind. Here are the pylon signage specifications.
| Component | Material | Specification |
|---|---|---|
| Outer body | Aluminium cladding | Lightweight, rustproof, humidity-resistant |
| Internal frame | Galvanised structural steel | Load-bearing against wind shear |
| Sign face | Cast acrylic | Even light transmission, true colour |
| Lighting | Samsung chip LED modules | 160-degree spread, IP67-rated |
| Coating | Polyurethane UV protection | Resists sun fading for 5+ years |
Typical heights run from about 2 to 4 metres for small pylon signs, 4 to 8 metres for standard units, and 10 metres or more for highway pylons. Every structure is engineered to withstand wind loads up to 160 km/h.
How much does pylon signage cost in Dubai?
Pylon signage in Dubai costs from about AED 8,000 to over AED 100,000. A small pylon sits at the low end; a large mall or highway pylon at the top. The price depends on height, structure, lighting, and foundations. Here are indicative ranges.
These are planning ranges, not a quote. Cost rises with height, LED lighting, digital price displays, and deep foundations. A site survey gives you an exact figure, and we do it at no cost.
Built for Dubai: hotels, gas stations, and commercial sites
We install pylons for hotels, gas stations, malls, hospitals, and business parks across Dubai. Each use needs a different structure, so we match the pylon to the site and traffic.
We fabricate and install across Dubai, Abu Dhabi, and Sharjah, including business parks in Dubai Investment Park (DIP) and free zones like Jebel Ali (JAFZA).
Approvals, foundations, and installation
Every pylon in Dubai needs a municipality permit and an engineered foundation, both of which we handle. Pylon sign construction is structural work, not just a sign.
Our Pylon sign making process, stage by stage
We run every pylon project through four stages, with a 14 to 21 day build plus permit time.
Design
We draw accurate blueprints in AutoCAD and send a 3D render within 48 hours.
Fabrication
We cut the steel frame with CNC laser systems and weld it for full wind rating.
Installation
We anchor the foundation, then crane and fix the structure on site.
Maintenance
We inspect the LED modules twice a year and clean the faces to keep them bright.
Why Bab Al Mashriq
We are a pylon signage manufacturer, so we engineer, fabricate, and install every structure ourselves to ISO 9001 quality. We have built signage across the UAE since 2015. A few reasons companies choose us:
- Engineered and permitted. We handle structural calculations, Dubai Municipality permits, and foundations.
- In-house fabrication. We cut, weld, and light every pylon in our own facility.
- Built for the climate. Galvanised steel, UV coatings, and IP67 LEDs rated for 160 km/h winds.
- Trusted by known brands. We have worked with names like Magic Planet, Magrabi, and Nakheel
Brands We Work With
The Trusted Signage Partner for Dubai Leading Brands
Call Us Now For Custom Signboard Design
Our Pylon Sign Projects across the Dubai
Bab Al Mashriq installs high-visibility pylon signage for shopping malls, hospitals, and hotels throughout the Emirates. Our portfolio includes over 500 completed totem signage projects across Dubai. These installations demonstrate our capability to engineer durable pole sign structures for diverse commercial environments.
Shopping Malls
Bab Al Mashriq fabricates large-scale pylon signs that list multiple tenants for regional shopping malls.

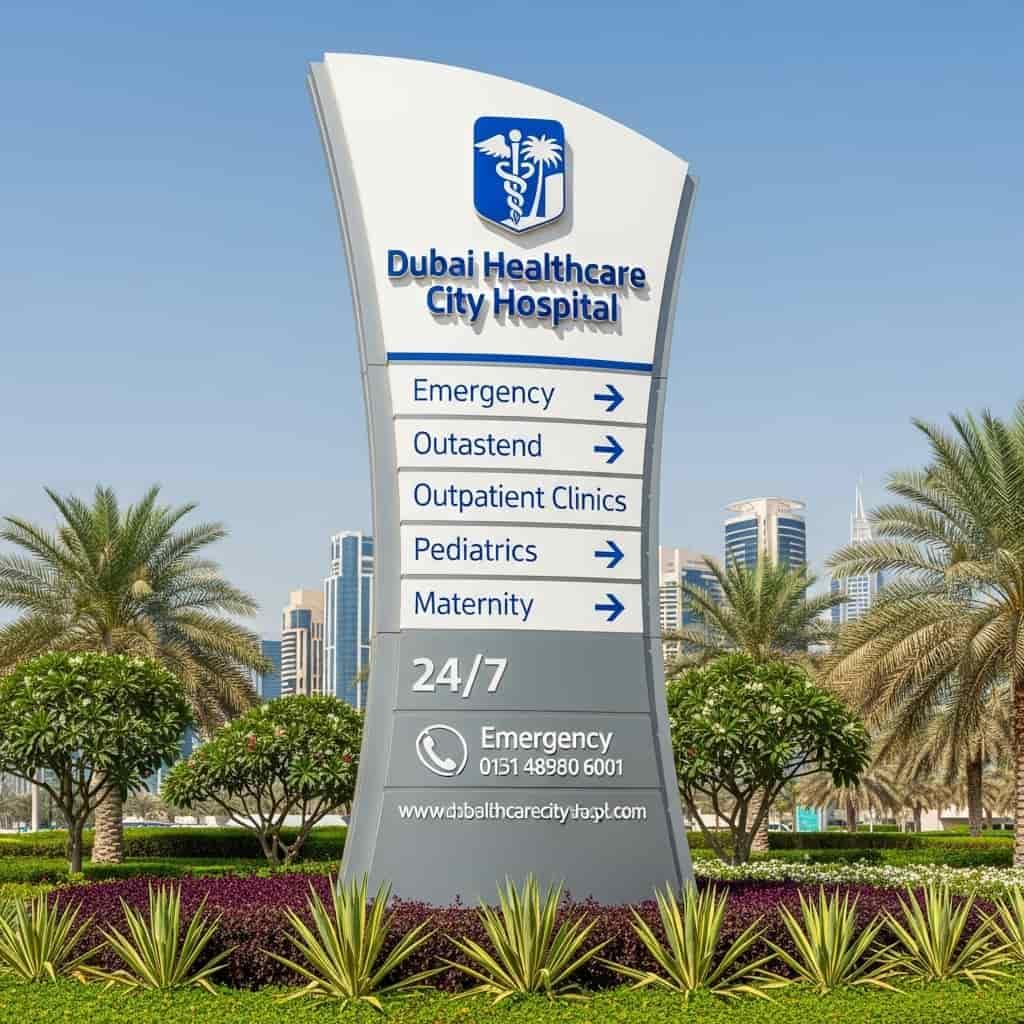

Hospitals
The emergency entrance pylon signage provides critical wayfinding for 24-hour medical facilities.
Parks
Public parks and business parks employ durable totem signage to map recreational zones for visitors.

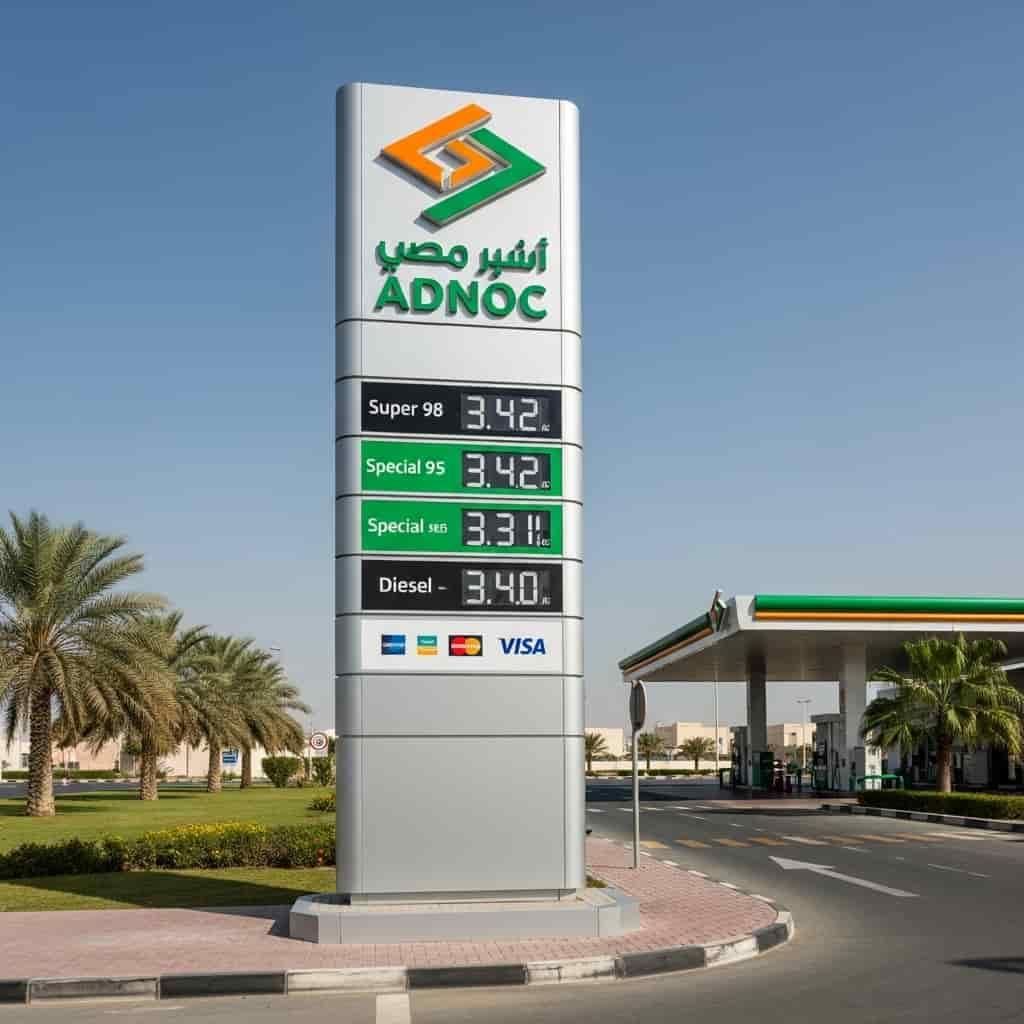

Petrol Stations
Fuel stations install digital price-displaying pole sign units for highway visibility.
Frequently Ask Questions
What is a pylon signage
Pylon signage is a tall, freestanding outdoor sign on one or more columns, seen from a distance. It is also called a totem or monolith. It is common at malls, hotels, and petrol stations.
What does pylon mean?
Pylon means a tall tower or gateway, from the Greek word for gateway. In signage, it is the tall support that raises the sign above cars and walls.
What are the three types of pylons?
The three main types are single-pole, twin-pole, and multi-tenant pylon signs. They also split by lighting into illuminated and non-illuminated.
What is the difference between a pole sign and a pylon sign?
A pole sign stands on exposed poles; a pylon sign hides the support in a clad column. Pylon signs are usually taller and list more tenants.
How much does pylon signage cost in Dubai?
A pylon sign costs from about AED 8,000 to over AED 100,000. Height, lighting, and foundation set the price. A small unit is cheapest; a large mall pylon costs most.
How long does a pylon signage project take?
Most pylon projects take 14 to 21 days from design to install, though permits can add time. You get a schedule after the site survey.
Is pylon signage a good fit for small businesses?
Yes. We make small pylon signs from 2 metres for compact plots and forecourts. They give roadside visibility at a lower cost than a large unit.
Do you handle the government approvals?
Yes. We prepare the Dubai Municipality and RTA submissions, including the structural calculations. Approvals are part of the job.
Ready to raise your brand above the traffic?
Bab Al Mashriq is a pylon sign company in Dubai. We engineer, fabricate, and install pylon signs, totems, and monuments from one team. Whether you need a small forecourt pylon or a highway mall sign, book a free site survey and get a fixed quote. We will make sure your pylon signage in Dubai is wind-rated, approved, and seen from the road.
